The Applications provides a robust interface for administrators to integrate third-party applications with the platform and deliver a Single Sign-On (SSO) dashboard for users. This feature simplifies access management and enhances user convenience by offering a centralized hub for multiple applications.

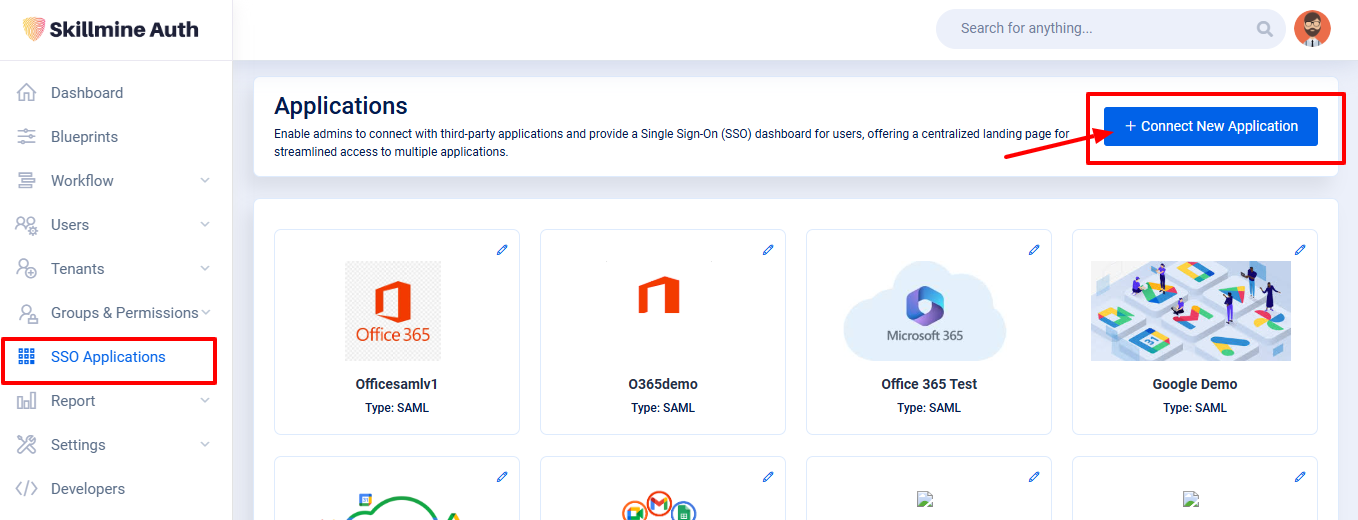

Click on the Connect New Application On the Right Corner

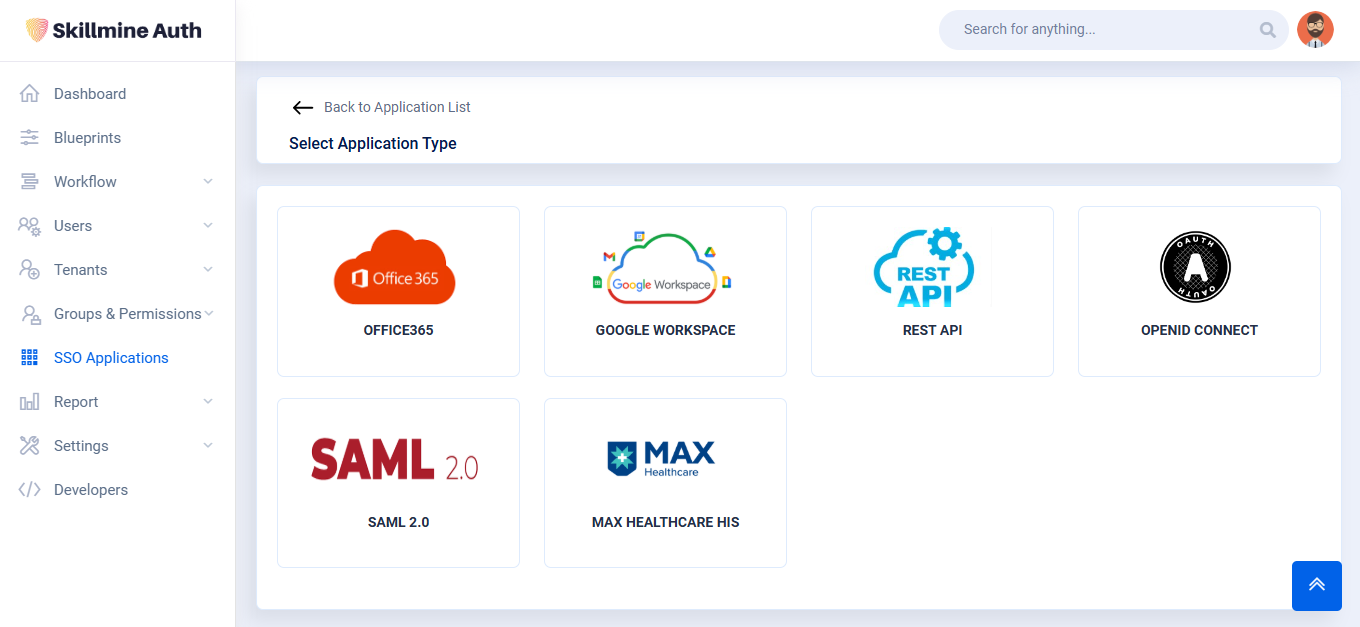

Below are the application types we offer.

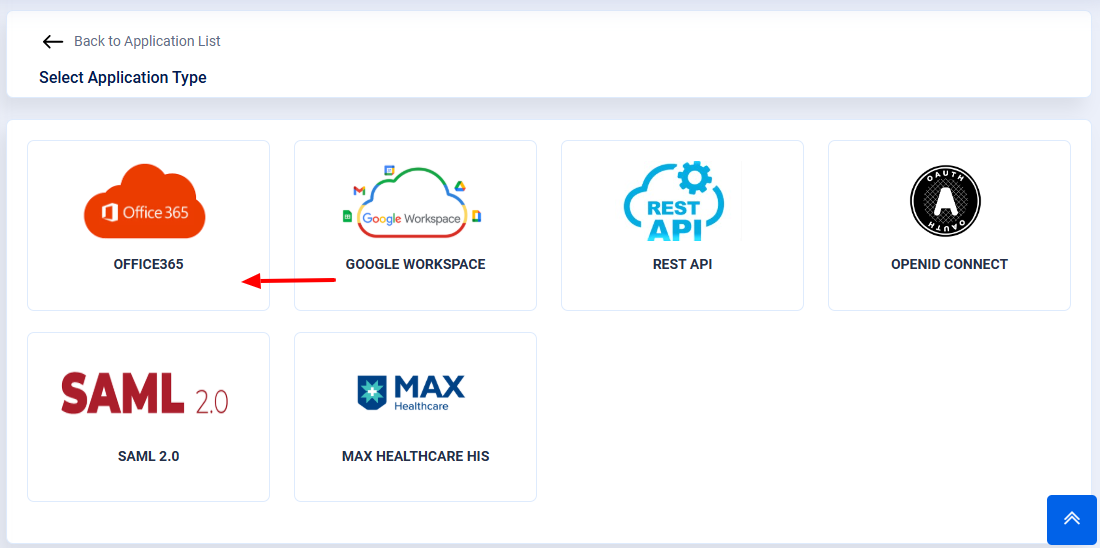

OFFICE365:

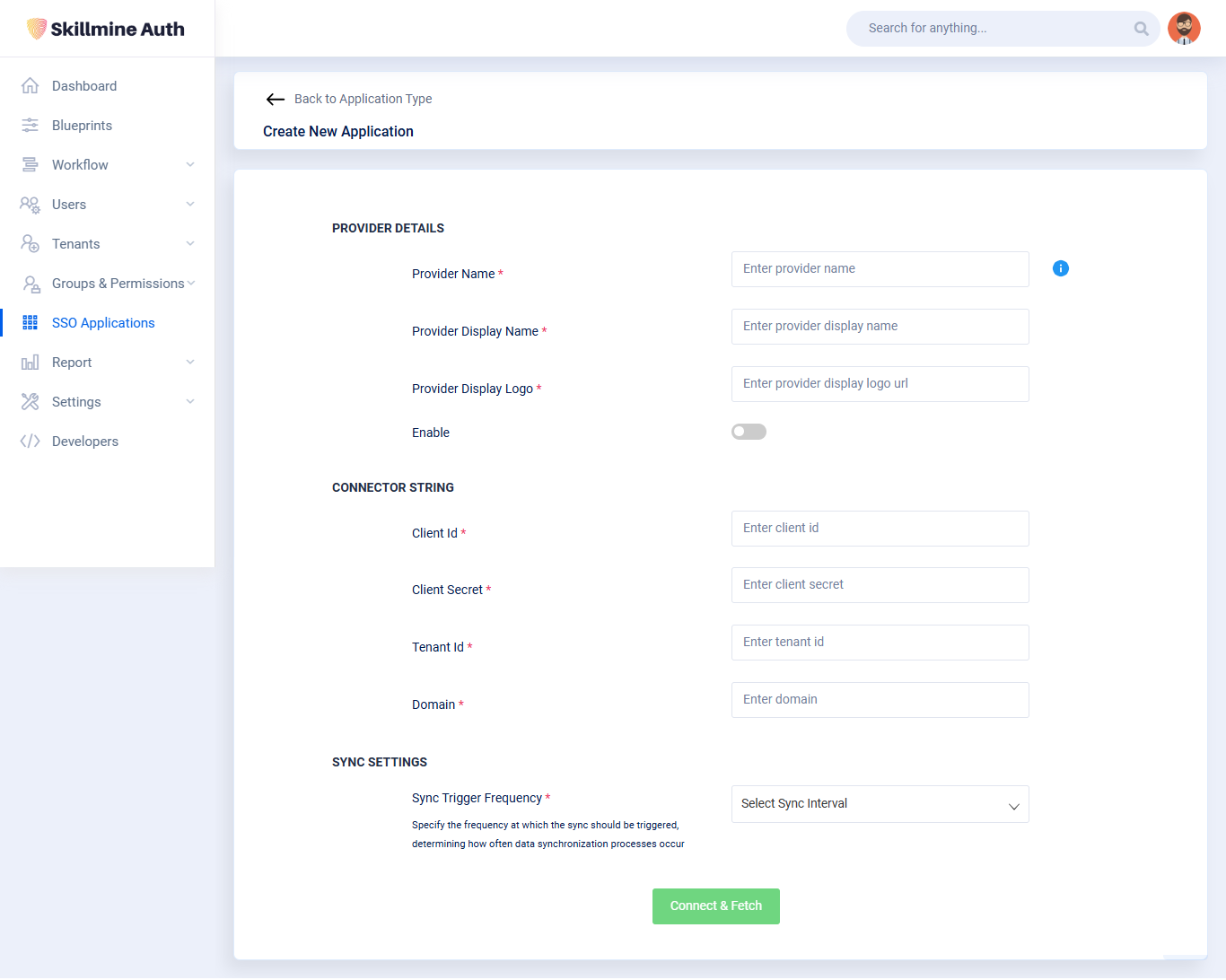

Office 365
1. Provider Details
This section captures the basic details about the application provider.
Provider Name (Required):
Enter the unique name of the application provider.
Example: Google Auth.
Provider Display Name (Required):
Enter the display name of the provider, which will appear in the user interface.
Example: Google.
Provider Display Logo (Optional):
Provide a URL for the provider’s logo that will be displayed alongside the application name.
Example: https://example.com/logo.png.
Enable (Toggle): Use this toggle to activate or deactivate the provider. Default: Disabled.
2. Connector String
This section collects details for connecting to the application.
Client Id (Required): Enter the client ID provided by the application provider.
Client Secret (Required): Provide the client secret for authentication.
Tenant Id (Required): Enter the tenant ID associated with the application.
Domain (Required):
Specify the domain name for the application.
Example: example.com.
3. Sync Settings
This section manages data synchronization settings.
Sync Trigger Frequency (Required): Select the frequency at which data synchronization should occur. Options might include:
Every 1 Minutes
Every 5 Minutes
Every 10 Minutes
Every 15 Minutes

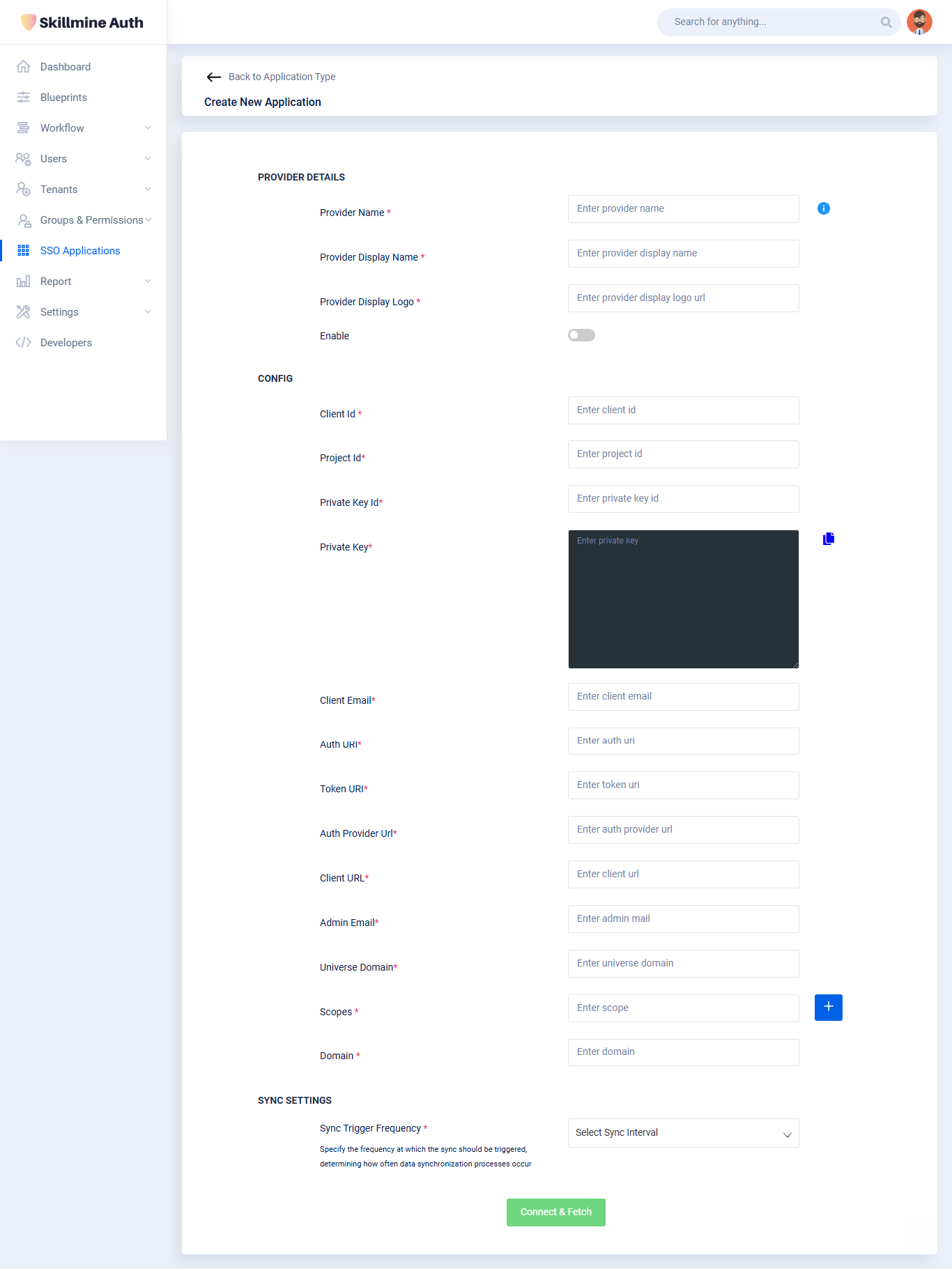

Google Workspace:
1. Provider Details
This section captures general information about the SSO provider.
Provider Name (Required):
Enter the unique name of the provider. This is used for identification purposes.
Example: GoogleAuth.
Provider Display Name (Required):
Specify the name to be displayed in the user interface.
Example: Google.
Provider Display Logo (Required):
Provide a URL pointing to the logo image of the provider.
Example: https://example.com/logo.png.
Enable (Toggle): Enable or disable the SSO provider. Default: Disabled.
2. Config
This section collects essential configuration details for connecting to the SSO provider.
Client Details
Client Id (Required): Enter the unique identifier for the client application.
Project Id (Required): Specify the project ID associated with the application provider.
Private Key Id (Required): Provide the private key ID used for authentication.
Private Key (Required): Enter the private key in the designated input box.
Client Email (Required): Enter the client email associated with the application.
Auth URI (Required):
Provide the URL for authentication requests.
Example: https://auth.example.com.
Token URI (Required):
Specify the endpoint for token retrieval.
Example: https://token.example.com.
Auth Provider URI (Required):
Enter the URL for the authentication provider.
Example: https://provider.example.com.
Client URL (Required): Provide the client URL for the application.
Admin Email (Required): Enter the administrator's email address for managing the application.
Universe Domain (Required):
Specify the domain name of the application provider.
Example: example.com.
Scopes (Required): Add the required scopes for the application. Click the + button to add multiple scopes.
Domain (Required): Specify the domain for the client’s application.
3. Sync Settings
This section allows users to define synchronization settings.
Sync Trigger Frequency (Required): Select the frequency at which synchronization occurs. Example options include:
Every 1 Minutes
Every 5 Minutes
Every 10 Minutes
Every 15 Minutes

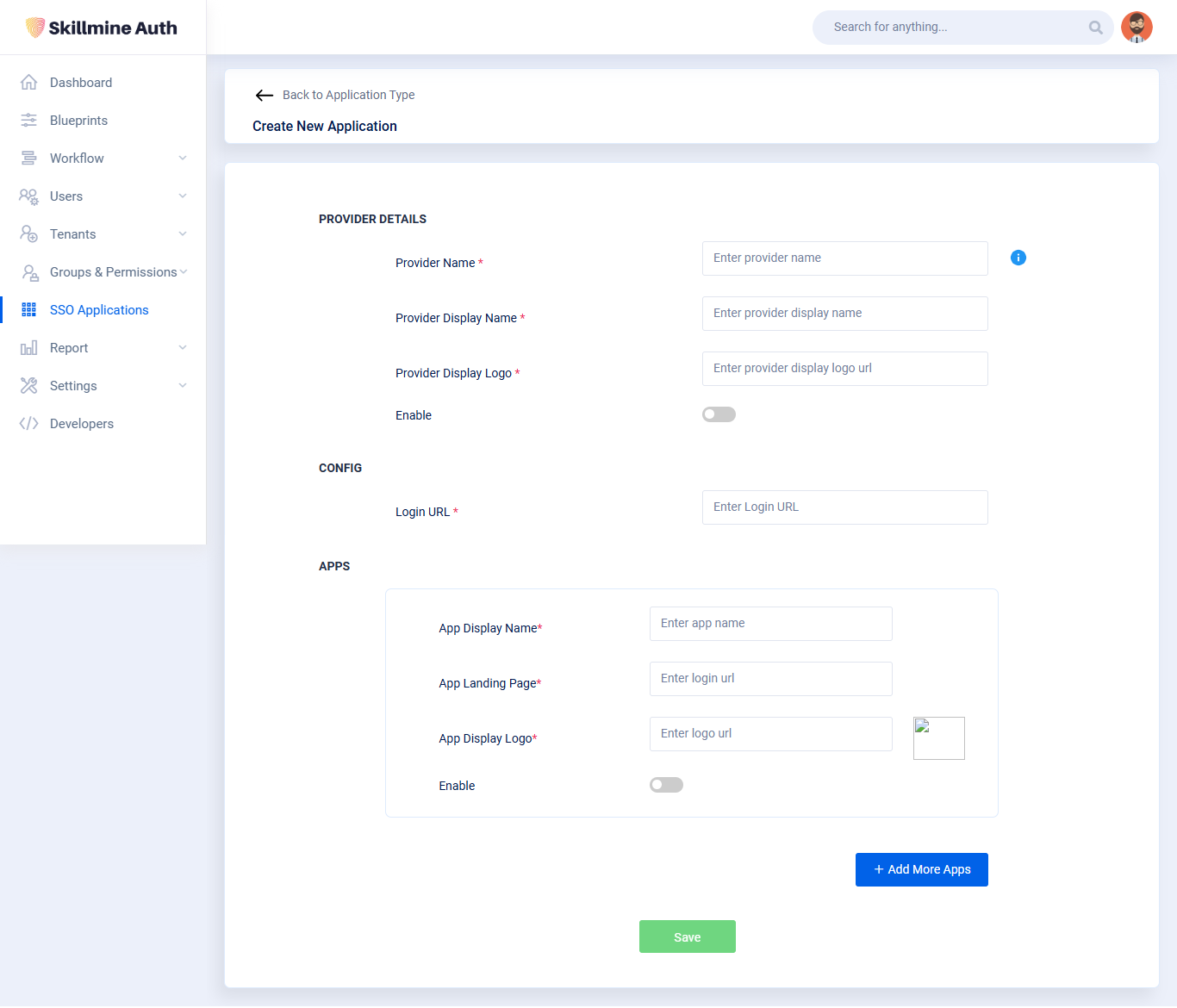

Rest API
The form is divided into three primary sections: Provider Details, Config, and Apps.
1. Provider Details
This section is used to define the basic information about the provider.
Provider Name (Required):
Enter a unique name for the provider. This name is used for internal identification purposes.
Example: SkillmineSSO.
Provider Display Name (Required):
Specify the name that will be displayed in the user interface.
Example: Skillmine.
Provider Display Logo (Required):
Provide the URL of the provider's logo to visually identify it in the UI.
Example: https://example.com/logo.png.
Enable (Toggle): Use this toggle to enable or disable the provider. Default: Disabled.
2. Config
This section collects critical configuration details for connecting to the application.
Login URL (Required):
Provide the login URL for the application.
Example: https://auth.skillmine.com/login.
3. Apps
This section allows you to define and manage multiple applications associated with the provider.
App Display Name (Required):
Enter the name of the application to be displayed in the interface.
Example: Skillmine Dashboard.
App Landing Page (Required):
Specify the login or landing page URL for the app.
Example: https://dashboard.skillmine.com.
App Display Logo (Required):
Provide a URL pointing to the app's logo. This is displayed alongside the app's name.
Example: https://example.com/app-logo.png.
Enable (Toggle): Use this toggle to enable or disable the application. Default: Disabled.
Adding Multiple Apps
To add more applications:
Click the + Add More Apps button.
A new set of fields will appear

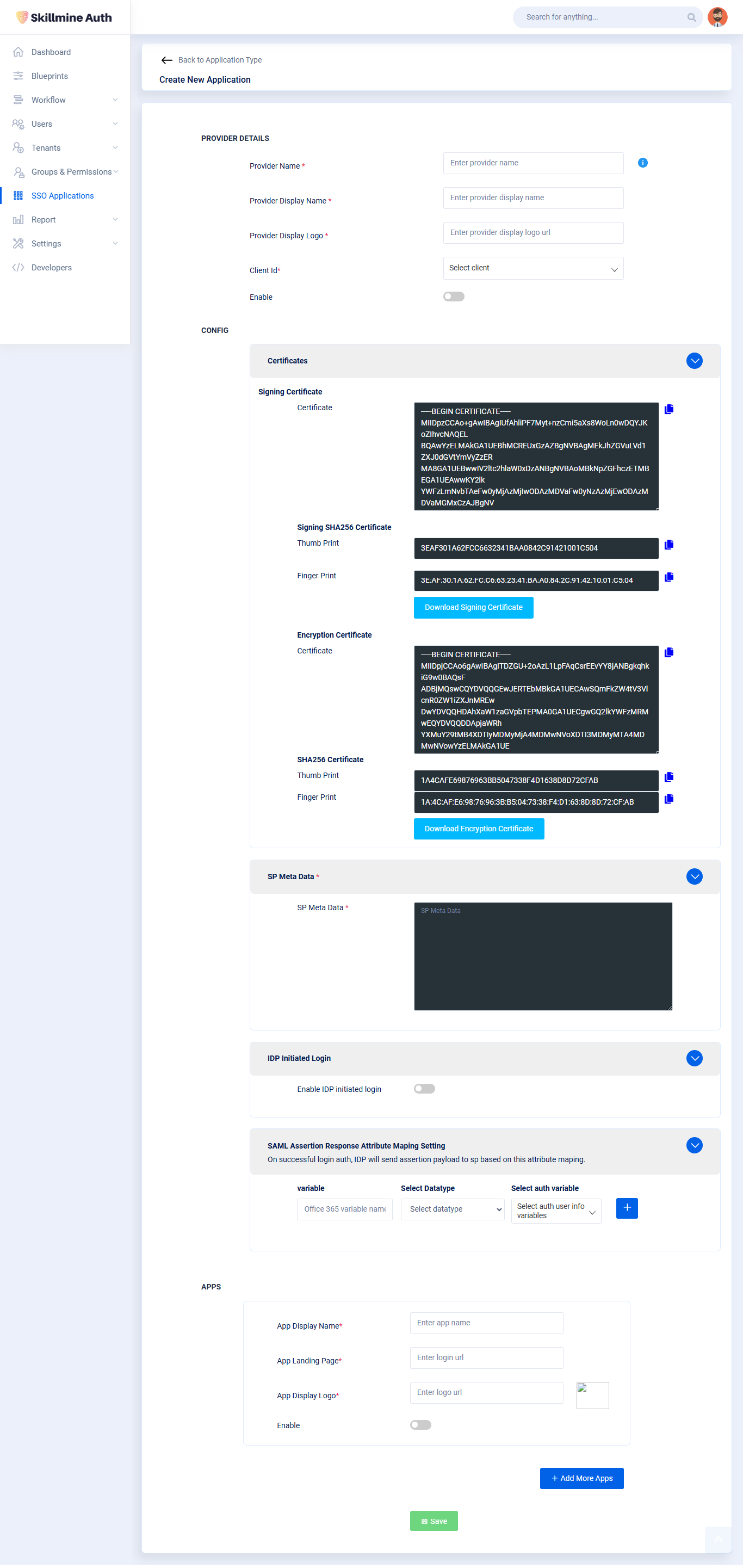

SAML
1. Provider Details
Defines the basic provider information.
Provider Name (Required):
Enter a unique name for the provider.
Example: SkillmineSSO.
Provider Display Name (Required):
Enter the name that will be displayed in the interface.
Example: Skillmine.
Provider Display Logo (Required):
Provide a URL for the provider's logo.
Example: https://example.com/logo.png.
Client ID (Dropdown): Select the client associated with this provider.
Enable (Toggle): Use this toggle to enable or disable the provider. Default: Disabled.
2. Config
Allows the user to manage certificate settings for SAML integration.
Certificates Section:
Signing Certificate:
Certificate: Paste the signing certificate content.
Signing SHA256 Certificate:
Thumb Print: Displays the certificate's SHA256 thumbprint.
Finger Print: Displays the certificate's fingerprint.
Download Signing Certificate: Button to download the signing certificate.
Encryption Certificate:
Certificate: Paste the encryption certificate content.
SHA256 Certificate:
Thumb Print: Displays the certificate's SHA256 thumbprint.
Finger Print: Displays the certificate's fingerprint.
Download Encryption Certificate: Button to download the encryption certificate.
3. SP Meta Data
SP Meta Data (Required): Paste or enter the Service Provider Metadata in this field.
4. IDP Initiated Login
Enable IDP Initiated Login (Toggle): Use this toggle to enable or disable IDP-initiated login. Default: Disabled.
5. SAML Assertion Response Attribute Mapping Setting
Configure mapping of SAML assertion attributes for successful login payloads.
Variable:
Enter the variable name to be used in Office 365 or another system.
Example: Office 365 variable name.
Select Datatype (Dropdown): Choose the datatype for the variable. Options include String, Number, etc.
Select Auth Variable (Dropdown): Map the variable to an existing authentication user information variable.
Add Button (+): Click the + button to add more mapping configurations.
6. Apps
Configure the applications associated with the SSO provider.
App Display Name (Required):
Enter the name of the app to be displayed in the interface.
Example: Skillmine Dashboard.
App Landing Page (Required):
Provide the landing page URL for the application.
Example: https://dashboard.skillmine.com.
App Display Logo (Required):
Enter the URL for the app's logo.
Example: https://example.com/app-logo.png.
Enable (Toggle): Use this toggle to enable or disable the app. Default: Disabled.
Add More Apps: Click the + Add More Apps button to add multiple applications.
